Rotary Screw
Engine Driven Compressors

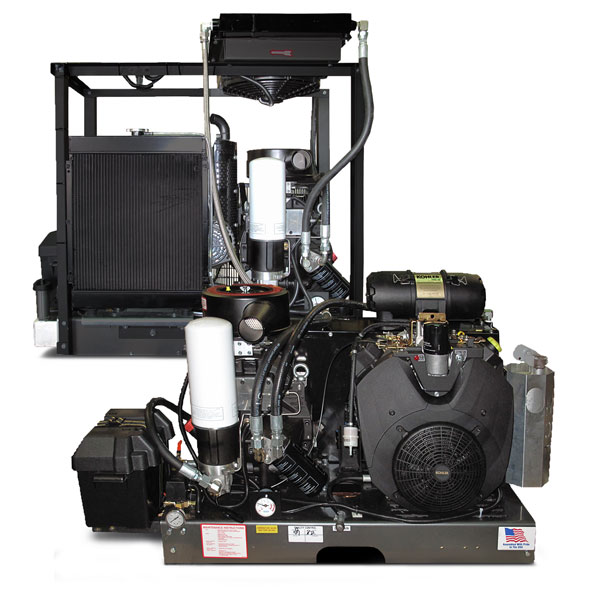

125 cfm Gas | 140 cfm Diesel Engine Driven Rotary Screw
Industrial Gold engine-driven rotary screw air compressors deliver extreme job-site power with the highest levels of reliability, efficiency and productivity available. A great fit for any mission-critical application, the 100% duty cycle assures the compressor can not be overworked. Quality compomnents, simple controls, easy maintenance and once a year oil changes make this a great solution for high-volume and high productivity environments.
- Features
- Gas | 125 cfm @ 150 psi
- Diesel | 140 cfm @ 150 psi
- No Start-Up Kit Required
- Optional 5-Year Pump Warranty
- Airend manufactured with German rotary screw components
- ASME Powder coated air receiver
- Easy to read and access gauges
- Easy to remove bolt on oil cooler for cleaning
- Extended oil drain with ball valve for easy service
- Factory filled with premium synthetic fluid
- Heavy duty air filter
- Industrial-duty drive engine
- Omega profile rotors
- Operating pressures from 100-190 psi available
- Simplified operating controls, no complicated micro-processor
- Single control solenoid operation
- Spin on oil filter
- Spin on separator
- UL control components
- 220 PSI maximum working pressure
- Platinum Compressor Features
- Air/oil cooler
- Battery mounted and wired
- SIMPLEX controls
- Tank discharge ball valve
- Vibration isolation pads
- Freight pre-paid in the 48 states & southern Canada
| Model | HP | Mount | Tank | Drive Engine | Length | Width | Height |
|---|---|---|---|---|---|---|---|
| R38GECBM | 38 | Base Mount | N/A | Kohler | 48 | 38 | 48 |
| R35GEKBM | 34 | Base Mount | N/A | Kohler Diesel | 50 | 42 | 48 |
| Add -P after model number to make Platinum Model. Unit does not come standard with fuel tank. | |||||||
