Reciprocating CompressorsEngine Driven Compressors

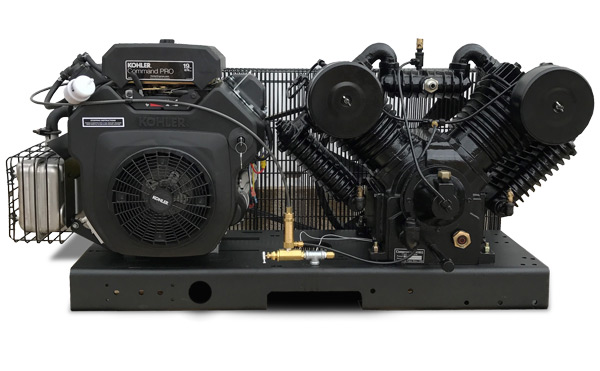

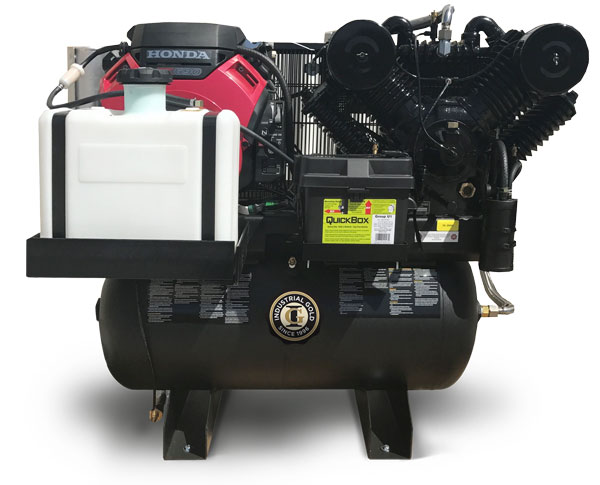

18 HP Gas Engine Driven Compressor
IG Industrial-duty gas and diesel compressors are designed for applications that require air on the go. Built for durability and reliability with features designed to make these compressors simpler to use and easier to maintain than any other compressor in this class. The engine is standard on the drivers side of the vehicle. The unloader is at your finger tips so you can unload the compressor before starting to increase solenoid and starter life. The transfer tube is protected by the receiver for saftey.
With the capacity to run 1-inch impact wrenches along with any assortment of air tools, this is the compressor you need to get the job done.
- Features
- 35 cfm @ 175 psi
- No Start-Up Kit Required
- Optional 5-Year Pump Warranty
- Access to compressor valves without compressor head removal
- Alternator on drive engine
- ASME tested powder coated steel tank
- Bearings on both ends of the crank shaft
- Centrifugal unloader
- Critical controls protected by compressor base plate
- Disk and spring valves
- Drive engine on left side for safety
- Fully enclosed belt guard
- Full saddle mounting feet instead of pegged mounting feet
- Heavy-duty air filter
- Heavy-duty two-stage solid cast iron pump
- Industrial-duty engine
- Needle bearings, and inserts on rods
- Pilot valve continuous operation
- Swedish steel valves
- Torrington needle bearings
- 2-grove B width drive pulley
- Platinum Model Features
- Automatic tank drain
- Belt guard aftercooler
- On-board battery mounted and wired (No truck wiring needed)
- Tank discharge ball valve
- Vibration pads
- Freight pre-paid in the 48 states & southern Canada
- Downloads
- Product Sheet
- 8-15 HP Engine Driven Owners Manual
- Engine Driven Reciprocating Catalog
- Installation Guide
- Install Checklist
- Warranty
- Warranty Claim Form

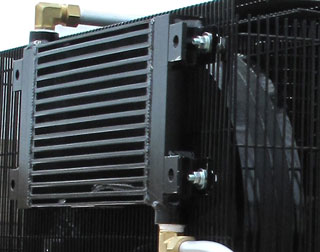

Air-cooled aftercooler on all Platinum units
| Model | HP | Mount | Tank | Drive Engine | Length | Width | Height |
|---|---|---|---|---|---|---|---|
| C180GEC36HC | 18 | Tank Mount | 30 Gallon Horizontal | Kohler | 48 | 26 | 48 |
| BMC180GEC36HC | 18 | Base Mount | 30 Gallon Horizontal | Kohler | 48 | 26 | 48 |
| C180GEH36HC | 18 | Base Mount | 30 Gallon Horizontal | Honda | 48 | 26 | 48 |
| BMC180GEH36HC | 18 | Base Mount | 30 Gallon Horizontal | Honda | 48 | 26 | 48 |
| Add -P after model number to make Platinum Model. Unit does not come standard with a fuel tank | |||||||
